High-voltage DC power feedthroughs from 1 kV to 30 kV with ceramic-to-metal seals, UHV leak rates below 1×10⁻¹⁰ mbar·l/s.
Available Models
8 modelsPower Feedthroughs

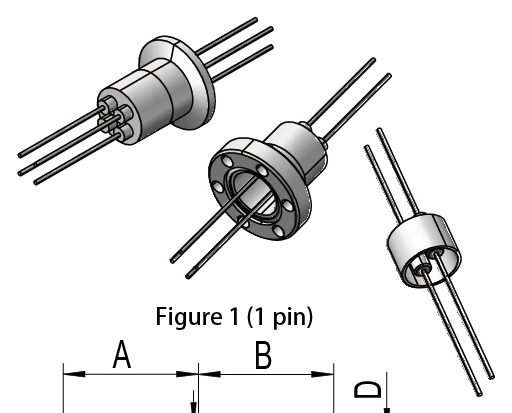

1 kV Power FeedthroughCompliance Power Feedthrough 1kV
1 kV DC power feedthrough with copper / nickel / molybdenum conductors, 1–8 pins, ceramic vacuum seal.
Power Feedthroughs
5 kV Power FeedthroughCompliance Power Feedthrough 5kV
5 kV DC power feedthrough rated up to 90 A for medium-power vacuum systems.
Power Feedthroughs
8 kV Power FeedthroughCompliance Power Feedthrough 8kV
8 kV DC power feedthrough rated up to 800 A for high-power vacuum systems.
Power Feedthroughs

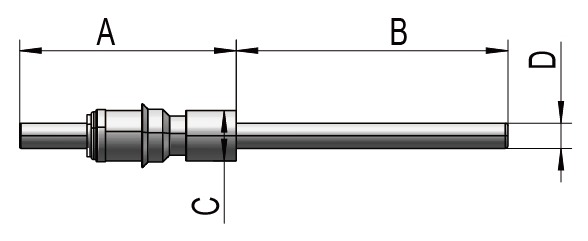

12 kV Power FeedthroughCompliance Power Feedthrough 12kV
12 kV DC power feedthrough, 50–145 A, multiple flange and pin configurations.
Power Feedthroughs

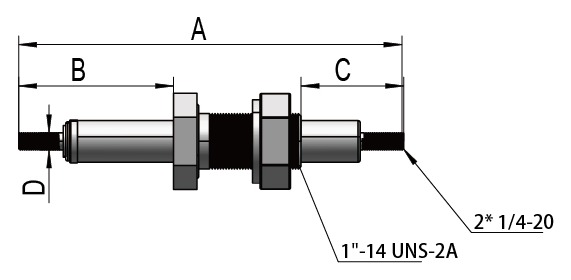

E-Beam 12 kV Baseplate FeedthroughCompliance E-Beam Power Feedthrough 12kV
12 kV baseplate feedthrough designed for electron-beam welding and processing machines.
Power Feedthroughs
14 kV Power FeedthroughCompliance Power Feedthrough 14kV
14 kV DC power feedthrough with stainless steel, nickel, molybdenum or copper conductors.
Power Feedthroughs
20 kV Power FeedthroughCompliance Power Feedthrough 20kV
20 kV DC power feedthrough, 1–4 pins, multiple lengths and flange sizes for different chamber layouts.
Power Feedthroughs

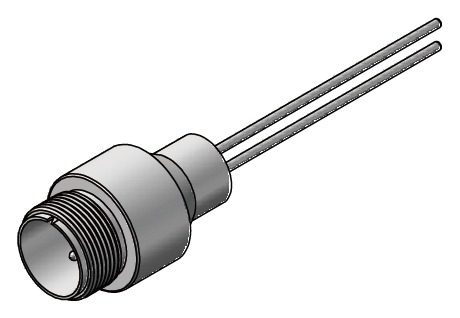

30 kV Power FeedthroughCompliance Power Feedthrough 30kV
30 kV high-voltage feedthrough with long creepage path for HV vacuum and accelerator applications.
