E-Beam 12 kV Baseplate Feedthrough — DYDB-12

E-Beam 12 kV Baseplate Feedthrough view 1

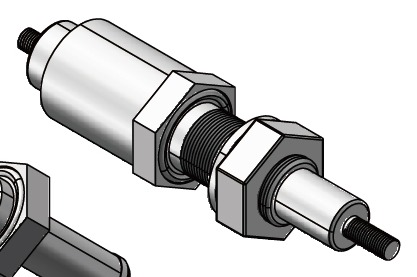

E-Beam 12 kV Baseplate Feedthrough view 2

* Product images and drawings are indicative; final dimensions per engineering drawing. Custom configurations available.

Power Feedthroughs

E-Beam 12 kV Baseplate Feedthrough

Name: E-Beam 12 kV Baseplate Feedthrough — DYDB-12
Brand: HermiCore

Compliance E-Beam Power Feedthrough 12kV Model: DYDB-12

12 kV baseplate feedthrough designed for electron-beam welding and processing machines.

Specifications

Voltage Rating	12 kV DC
Max Current	50 – 145 A
Vacuum Leak Rate	UHV < 1×10⁻¹⁰ mbar·l/s
Conductor Material	Copper / Nickel / Molybdenum
Mounting	Baseplate type
Temperature Range	-150 °C to 350 °C

Request a Quote Ask About Custom Design

Technical Overview

High-voltage power feedthroughs pass DC power through a vacuum chamber wall using a metallized alumina ceramic insulator brazed to a metal flange and conductor. The ceramic provides high dielectric strength and a long creepage path, and the brazed joint holds a helium leak rate below 1×10⁻¹⁰ mbar·l/s.
