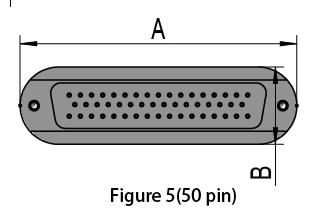

* Product images and drawings are indicative; final dimensions per engineering drawing. Custom configurations available.
Multi-Pin USB-D Push-On Feedthrough
Multi-Pin USB-D Push-On Feedthrough Model: USB-D9 / 15 / 25 / 37 / 50-pin USB-D push-on multipin feedthrough, gold-plated pins.
Specifications
| Voltage Rating | 500 V DC |
|---|---|
| Max Current | 3 A |
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Number of Pins | 9 / 15 / 25 / 37 / 50 |
| Flange | CF / KF |
| Conductor Material | Gold-plated pins |
| Temperature Range | -150 °C to 350 °C |
Technical Overview
Multipin feedthroughs carry multiple signal, power and data lines through a single vacuum port, with pins sealed into a ceramic or glass insulator. MIL-Spec MS, USB and SUB-D styles keep contact integrity while preserving UHV hermeticity.
Typical Applications
- Mass spectrometers and surface-analysis instruments
- Vacuum gauges and process instrumentation
- Semiconductor process chambers
- Thin-film deposition and coating systems
