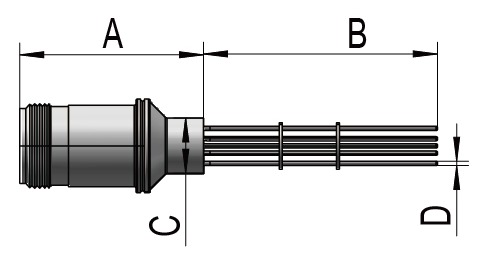

* Product images and drawings are indicative; final dimensions per engineering drawing. Custom configurations available.
MS-10 Mil-Spec Feedthrough
Multi-Pin Mil-Spec Feedthrough (MS-10) Model: MS-70010-pin MIL-spec multipin feedthrough in a compact flange design.
Specifications
| Voltage Rating | 700 V DC |
|---|---|
| Max Current | 8 – 17 A |
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Number of Pins | 10 |
| Flange | CF / KF |
| Atmosphere Side | MIL-C-5015 |
| Temperature Range | -150 °C to 450 °C |
Technical Overview
Multipin feedthroughs carry multiple signal, power and data lines through a single vacuum port, with pins sealed into a ceramic or glass insulator. MIL-Spec MS, USB and SUB-D styles keep contact integrity while preserving UHV hermeticity.
Typical Applications
- Mass spectrometers and surface-analysis instruments
- Vacuum gauges and process instrumentation
- Semiconductor process chambers
- Thin-film deposition and coating systems
