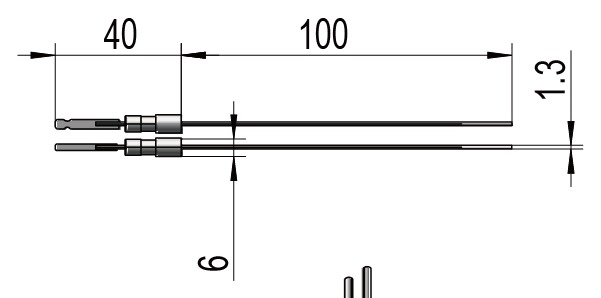

* Product images and drawings are indicative; final dimensions per engineering drawing. Custom configurations available.
Type C Thermocouple Feedthrough
Thermocouple Feedthrough, Type C Model: RDO-C-00Type C (tungsten-rhenium) thermocouple feedthrough, 0 to 2320 °C, 1 to 4 pairs.
Specifications
| Thermocouple Type | Type C (W-Re) |
|---|---|
| Temperature Range | 0 °C to 2320 °C |
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Flange | CF / KF |
| Number of Pairs | 1 / 2 / 3 / 4 |
| Body Material | Ceramic / Stainless Steel / Kovar |
Technical Overview
Thermocouple feedthroughs carry temperature measurement across the vacuum boundary with minimal error, sealing Type C or Type K couples in a ceramic insulator. They are rated for bakeout and high-temperature processes up to 2320 °C.
Typical Applications
- Furnace and thermal-processing vacuum systems
- CVD/PVD substrate temperature monitoring
- Cryogenic and bakeout temperature control
- Scientific vacuum experiments
