Fused Silica Viewport

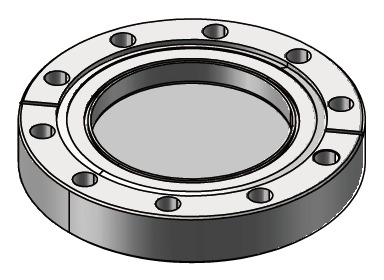

Fused Silica Viewport Model: SY-01Fused silica viewport, 200–3500 nm transmission, custom AR coatings available.
Specifications
| Window Material | Fused Silica (DUV / EUV grades) |
|---|---|
| Transmission Range | 200 – 3500 nm |
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Flange | CF / KF |
| Coating | Custom AR coatings on request |
| Max Operating Temperature | 200 °C |
Technical Overview
UHV viewports transmit light into or out of a vacuum chamber through a fused silica or sapphire window brazed to a metal flange. Fused silica covers 200–3500 nm; sapphire extends from 180 nm to 5000 nm with higher mechanical strength.
Typical Applications
- Plasma and vacuum process observation
- Optical spectroscopy and laser experiments
- Particle-beam diagnostics
- X-ray and synchrotron systems
