Ceramic Break 50 kV

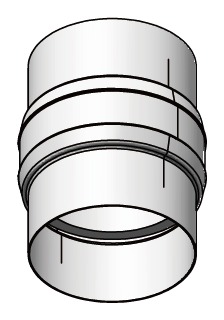

Ceramic Break, 50 kV Isolation Model: GLQ-5050 kV ultra-high-voltage ceramic break for accelerators and HV isolation systems.
Specifications
| Isolation Voltage | 50 kV DC |
|---|---|
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Flange | CF / KF (CF16 – CF200) |
| Conductor Material | Gold plated |
| Body Material | Ceramic / Stainless Steel / Kovar |
| Temperature Range | -150 °C to 450 °C |
Technical Overview
Ceramic breaks electrically isolate two sections of a vacuum line while maintaining a hermetic UHV seal. Gold-plated conductors and CF/KF flanges support floating potentials up to 50 kV.
Typical Applications
- Ion-beam and accelerator beam lines
- Electrostatic lens and deflector supplies
- Floating potentials on vacuum chambers
- High-voltage instrumentation isolation
