* Product images and drawings are indicative; final dimensions per engineering drawing. Custom configurations available.

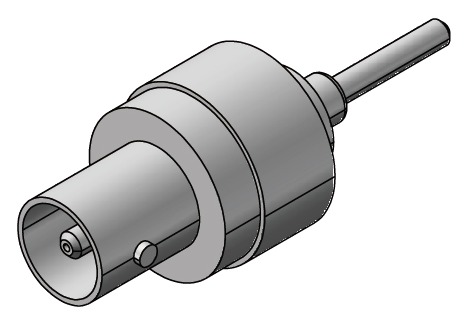

BNC-02 Coaxial Feedthrough
BNC Coaxial Feedthrough (Floating Shield) Model: BNC-0250 Ω BNC coaxial feedthrough with floating shield for isolation applications.
Specifications
| Impedance | 50 Ω |
|---|---|
| Voltage Rating | 500 V DC |
| Max Current | 3 A |
| Vacuum Leak Rate | UHV < 1×10⁻¹⁰ mbar·l/s |
| Flange | CF / KF |
| Conductor Material | Kovar (FeNiCo) |
| Temperature Range | -150 °C to 450 °C |
Technical Overview
50 Ω coaxial feedthroughs preserve controlled impedance across the vacuum boundary, so RF signals and fast pulses pass without reflections. BNC, MHV, N, SHV, SMA and SMB styles cover DC to 1 GHz and voltages up to 20 kV.
Typical Applications
- RF and microwave vacuum systems
- Plasma diagnostics and probes
- Electron guns and ion sources
- High-frequency instrumentation
